OPNsense: Block Websites and Force DNS Through Your Firewall

You installed OPNsense and traffic flows. Now you want to actually control what goes through it — block specific sites, stop clients from bypassing your DNS, see hostnames instead of raw IPs in the logs, and apply category-level blocking for gambling, malware, and torrent sites.

This post approaches DNS enforcement with a production-grade mindset: multiple defense layers, no single point of bypass, and verified results at each step. The same principles are used in enterprise networks — the implementation here is adapted for a homelab scale.

ℹ

Follow-up to OPNsense on Proxmox: Build a Dedicated Home Firewall. OPNsense must be installed with a working WAN and LAN before starting here.

Environment: OPNsense 26.1.2, Unbound DNS Resolver, LAN subnet 10.10.1.0/24.

How Blocking Works on OPNsense

Normal Traffic Flow (No Blocking)

Before adding any rules, understand what happens when you open a browser and type reddit.com:

Your browser asks OPNsense’s Unbound to resolve reddit.com
Unbound returns the real IP (151.101.1.140)
Your browser opens a TCP connection to that IP on port 443 (HTTPS)
OPNsense’s firewall allows the packet and NATs it out the WAN
Reddit responds and the page loads

Every step succeeds because nothing is blocking. Now look at where each defense layer intercepts this flow.

Six Defense Layers

Each layer targets a different step in the flow above. They are grouped into three categories:

Layers 1–3: Blocking — what to block and how

Layer	What it does	When it acts
Layer 1: DNS Override	Returns `0.0.0.0` for blocked domains via Unbound	At DNS resolution time, before any connection
Layer 2: Firewall Alias	Blocks packets to specific IPs (resolved from domain aliases)	After DNS resolution, at connection time
Layer 3: Block External DNS	Drops all port 53 traffic to anything except OPNsense	When a client tries to bypass Unbound

Layers 4–5: Anti-Bypass — close escape routes

Layer	What it does	When it acts
Layer 4: Block DoT	Drops all port 853 traffic (DNS-over-TLS)	When a client tries encrypted DNS bypass
Layer 5: Block DoH	Drops port 443 to known DoH providers (Cloudflare, Google)	When a client tries DNS-over-HTTPS bypass

Layer 6: Automation — scale blocking with feeds

Layer	What it does	When it acts
Layer 6: DNSBL	Auto-blocks thousands of domains from maintained feeds (ads, malware, gambling)	At DNS resolution time, same as Layer 1

Normal DNS flow (through OPNsense):

Client asks Unbound to resolve reddit.com
Layer 1 + 6 check: Unbound looks for a DNS override or DNSBL match — if found, returns 0.0.0.0 → blocked
- If no match, Unbound resolves normally and returns the real IP → client connects → packet passes through the firewall
Layer 2 check: Firewall compares the destination IP against blocked aliases:
- If match → drops packet
- If no match → traffic reaches the internet

Bypass attempts:

Client sends DNS query directly to 8.8.8.8 on port 53
The packet must pass through OPNsense’s firewall to leave the LAN
Layer 3 check: Firewall sees port 53 to a destination that is not 10.10.1.3 → drops packet
Layer 4 check: Client tries DoT on port 853 → blocked
Layer 5 check: Client tries DoH on port 443 to known providers → blocked

All six layers are complementary. Apply them together for defense in depth.

1. Block a Specific Website

This section implements Layer 1 (DNS Override) and Layer 2 (Firewall Alias) from the diagram above. Both layers reinforce each other — the DNS override blocks by name, the firewall alias blocks by IP.

Layer 2 — Block via Firewall Alias

Step 1 — Create the Alias

Navigate to Firewall → Aliases → click +:

Field	Value
Name	`BLOCK_REDDIT`
Type	`Host(s)`
Description	Block Reddit on LAN

In the Content field, add all domains the site depends on — the main domain alone is not enough for CDN-backed sites:

reddit.com
www.reddit.com
old.reddit.com
redd.it
redditstatic.com
redditmedia.com

Click Save → Apply changes.

💡

Including asset/CDN domains (redditstatic.com, redditmedia.com) is what makes this work. Blocking only reddit.com leaves CDN endpoints open and the site partially loads. For other sites, open DevTools → Network tab to identify which domains the page calls.

OPNsense Firewall → Aliases list showing BLOCK_REDDIT entry with all reddit domains

Step 2 — Create the Block Rule

Navigate to Firewall → Rules → LAN → click +:

Set Action to Block, Interface to LAN, Direction to in, TCP/IP Version to IPv4+IPv6, and Protocol to any.

For Source, select LAN net. For Destination, select the BLOCK_REDDIT alias.

Description: Block Reddit from LAN

Move this rule above your default allow rules — OPNsense evaluates rules top-down and stops at the first match.

Click Save → Apply changes.

⚠

This approach relies on DNS resolution to populate the alias IPs. OPNsense refreshes them on its own schedule. A client that cached an IP before the rule was added may still connect until that cache expires (typically under 5 minutes).

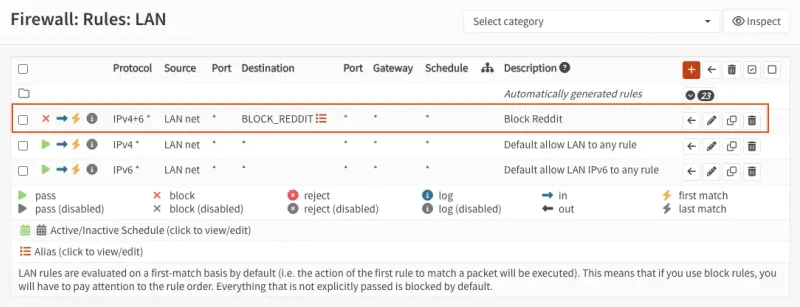

Firewall → Rules → LAN showing BLOCK_REDDIT rule at the top of the list with Action: Block

Layer 1 — Block via DNS Override

This intercepts the domain at DNS resolution time, before any connection attempt. Use it alongside Layer 2 for a deeper block.

Navigate to Services → Unbound DNS → Overrides → Host Overrides → click +:
Set Host to *, Domain to reddit.com, Type to A, and IP to 0.0.0.0
Description: DNS block — reddit.com
Repeat for each domain in the alias. Click Apply once when done

When a client resolves any of these domains, Unbound returns 0.0.0.0 — the browser gets a non-routable address before even attempting a connection.

Verify it works:

nslookup reddit.com
Server:		10.10.1.3
Address:	10.10.1.3#53

Name:	reddit.com
Address: 0.0.0.0

OPNsense’s unbound answered with 0.0.0.0 - The block is working. Now test what happens if a client bypasses OPNsense:

nslookup reddit.com 1.1.1.1
Server:		1.1.1.1
Address:	1.1.1.1#53

Non-authoritative answer:
Name:	reddit.com
Address: 151.101.1.140
Name:	reddit.com
Address: 151.101.65.140
Name:	reddit.com
Address: 151.101.193.140
Name:	reddit.com
Address: 151.101.129.140

Interesting, the real IP comes back, Any client with a hardcoded DNS server (1.1.1.1, 8.8.8.8) completely sidesteps Unbound and your LAN block rules.

The next section fixes this by forcing all DNS queries through OPNsense regardless of what the client has configured.

2. Block External DNS (Layer 3)

This implements Layer 3 (Block External DNS) from the architecture diagram. DNS blocking only works if clients use OPNsense as their resolver. Any client with 8.8.8.8 or 1.1.1.1 hardcoded bypasses your Unbound rules entirely. The fix: a firewall rule that drops all port 53 traffic leaving your LAN to anywhere except OPNsense.

Navigate to Firewall → Rules → LAN → click +
Set Action to Block, Interface to LAN, Direction to in, TCP/IP Version to IPv4+IPv6, and Protocol to TCP/UDP
For Source, select LAN net
Destination — you want to block DNS to anywhere except OPNsense itself. Check Invert (the ! checkbox next to Destination), then set Destination to Single host or Network → 10.10.1.3. The invert makes the rule read: block port 53 to anything that is not 10.10.1.3
For Destination port, set From and To to 53
Description: Block external DNS
Click Save → Apply changes

⚠ Rule order matters

Go to Firewall → Rules → LAN and drag this block rule above your default “Allow LAN to any” rule. OPNsense evaluates rules top-down and stops at the first match — if the allow rule is above, the block never fires.

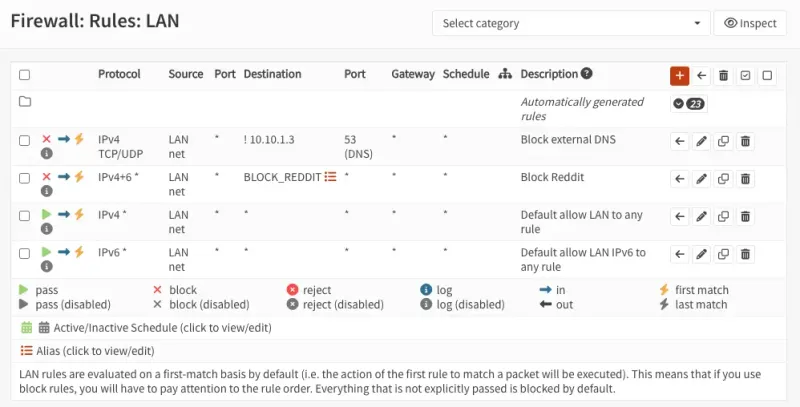

OPNsense Firewall Rules LAN blocks external DNS

Verify the Intercept Works

# Query an external DNS server — should now time out
nslookup reddit.com 8.8.8.8

⚠

Some browsers (Chrome, Firefox) support DNS-over-HTTPS (DoH) and bypass local DNS entirely. Disable DoH in browser settings, or add a firewall rule blocking outbound TCP port 443 to known DoH providers (1.1.1.1, 8.8.8.8, 9.9.9.9).

nslookup reddit.com 8.8.8.8
;; connection timed out; no servers could be reached

nslookup reddit.com 1.1.1.1
;; connection timed out; no servers could be reached

External DNS is now blocked. Queries to OPNsense still resolve — and return 0.0.0.0 for blocked domains:

nslookup reddit.com
Server:		10.10.1.3
Address:	10.10.1.3#53

Name:	reddit.com
Address: 0.0.0.0

OPNsense replied with 0.0.0.0 — the DNS block is working and cannot be bypassed by pointing at an external resolver.

Now that everything is set up, let’s remove the rule blocking reddit.com 🙂

3. Block DoT — Layer 4 (Port 853)

DNS-over-TLS (DoT) is another way clients can bypass your local DNS. It encrypts DNS queries over port 853, making them invisible to Unbound. Block it at the firewall.

Navigate to Firewall → Rules → LAN → click + (add to top)
Set Action to Block, Interface to LAN, Direction to in, TCP/IP Version to IPv4+IPv6, and Protocol to TCP
For Source, select LAN net. For Destination, select any
For Destination port, set From and To to 853
Description: Block DNS over TLS (DoT)
Click Save → Apply changes
Verify DoT is blocked:

openssl s_client -connect 1.1.1.1:853

Expected output — connection times out:

error:8000003C:system library:BIO_connect:Operation timed out

Confirm normal DNS still works:

nslookup google.com
Server:		10.10.1.3
Address:	10.10.1.3#53

Non-authoritative answer:
Name:	google.com
Address: 142.250.198.206

Your device is using OPNsense (10.10.1.3) as DNS. DNS enforcement is working — port 53 is locked down, and DoT is blocked.

4. Block DoH — Layer 5 (Known Providers)

DNS-over-HTTPS (DoH) sends DNS queries over port 443 — the same port as regular HTTPS traffic. This makes it impossible to block all DoH with a single port rule. However, blocking known DoH provider IPs still covers the most common bypass attempts.

Create the Alias

Navigate to Firewall → Aliases → click +:
Set Name to DOH_SERVERS
Set Type to Host
Set Description to Known DoH providers
In the Content field, set it as text and paste:

1.1.1.1
1.0.0.1
8.8.8.8
8.8.4.4

Click Save

Create the Block Rule

Navigate to Firewall → Rules → LAN → click + (add to top)
Set Action to Block and Protocol to TCP
For Source, select LAN net. For Destination, select the DOH_SERVERS alias
For Destination port, set From and To to 443
Description: Block DoH (known providers)
Click Save → Apply changes

⚠ Rule order matters

After saving, go to Firewall → Rules → LAN and verify the order from top to bottom:

Block DoH (443 → DOH_SERVERS)
Block DoT (853)
Block external DNS (53)
Allow LAN to any

OPNsense evaluates top-down. If the allow rule is above any of these, the block never fires.

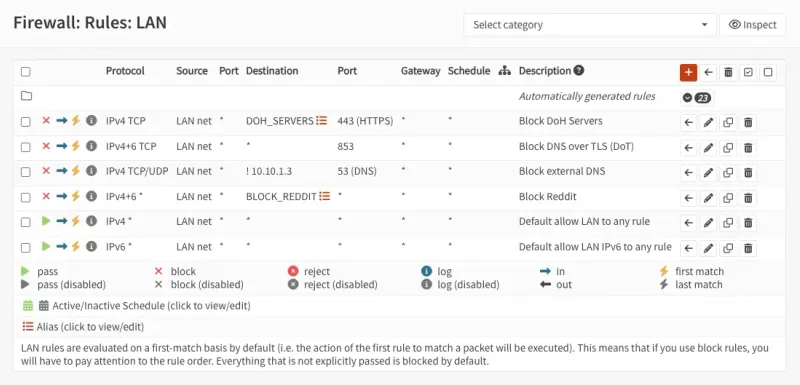

OPNsense Firewall Rules LAN all blocking rules: external DNS, DoT, DoH servers

ℹ

This is partial protection — it blocks the most common DoH providers (Cloudflare, Google) but cannot catch every DoH server on the internet since they all use port 443. For broader DoH blocking, consider using category-based DNSBL lists that include known DoH endpoints.

5. Category-Based DNS Blocking with DNSBL — Layer 6

Blocking individual sites by hand doesn’t scale. DNSBL (DNS Block List) solves this — instead of manually adding one domain at a time, Unbound downloads large community-maintained blocklists and automatically blocks ads, trackers, malware, and any custom domains you add. OPNsense has DNSBL built in, no extra packages needed.

Step 1 — Enable DNSBL

Navigate to Services → Unbound DNS → Blocklist and check Enable
Choose your blocklist sources. OPNsense ships with a large set of maintained lists. Pick based on what you want to block:

List	Purpose
[hagezi] Multi LIGHT	Basic protection — good starting point
[hagezi] Multi NORMAL	All-round protection, recommended for most setups
[hagezi] Multi PRO	Extended protection, more aggressive
[hagezi] Multi ULTIMATE	Maximum blocking — may break some sites
Steven Black List	Ads, trackers, and malware combined
[hagezi] Threat Intelligence Feeds	Known malware and phishing domains
[hagezi] Gambling	Gambling sites
[hagezi] DoH/VPN/TOR/Proxy Bypass	Blocks known bypass infrastructure
[hagezi] Anti Piracy	Torrent and piracy sites
EasyList / EasyPrivacy	Ad and tracker lists (browser-level equivalents)

💡

Start with [hagezi] Multi NORMAL and Steven Black List. These cover ads, tracking, and malware without being too aggressive. Add stricter lists if you want more control, but test after enabling each one — overly aggressive lists can block legitimate services.

Configure the remaining fields:

Allowlist Domains — domains that should never be blocked, even if they appear in a feed (supports regex)
Blocklist Domains — exact domain matches to always block (your manual additions)
Wildcard Domains — blocks a domain and all its subdomains (e.g. reddit.com blocks old.reddit.com, www.reddit.com, etc.)
Source Net(s) — apply the policy only to specific subnets, or leave empty to apply to all LAN traffic

Click Save → Apply.

Step 2 — Add Custom Block Domains

Use Wildcard Domains to block a site and all its subdomains at once:

reddit.com
redd.it
redditstatic.com
redditmedia.com

Click Save → Apply.

💡

Wildcard Domains is more powerful than Blocklist Domains for site blocking — reddit.com in Wildcard Domains will also catch old.reddit.com, www.reddit.com, and any future subdomains automatically. Blocklist Domains requires an exact match per entry.

Step 3 — Restart Unbound

Navigate to Services → Unbound DNS → General and click Restart. This forces Unbound to reload with the updated blocklists.

Verify Blocking Works

nslookup doubleclick.net
Server:		10.10.1.3
Address:	10.10.1.3#53

Name:	doubleclick.net
Address: 0.0.0.0

nslookup ads.google.com
Server:		10.10.1.3
Address:	10.10.1.3#53

Name:	ads.google.com
Address: 0.0.0.0

nslookup tracking.facebook.com
Server:		10.10.1.3
Address:	10.10.1.3#53

** server can't find tracking.facebook.com: NXDOMAIN

nslookup ad.doubleclick.net
Server:		10.10.1.3
Address:	10.10.1.3#53

Name:	ad.doubleclick.net
Address: 0.0.0.0

Ad and tracking domains resolve to 0.0.0.0 or return NXDOMAIN — both mean the connection is dropped before it reaches the internet.

Allowlist Exceptions

If a legitimate domain gets caught by a blocklist, navigate to Services → Unbound DNS → Blocklist → Allowlist → click +:

Field	Value
Domain	`legitimate-site.com`
Type	Domain

What You Now Have

Your OPNsense is now enforcing DNS at six layers with no single point of bypass:

Summary of what’s in place:

Blocking (Layers 1–3):

Layer 1: DNS Override — Unbound returns 0.0.0.0 for manually blocked domains
Layer 2: Firewall Alias — blocks by IP, catches traffic that bypasses DNS
Layer 3: Block External DNS — port 53 to non-OPNsense destinations dropped

Anti-Bypass (Layers 4–5):

Layer 4: Block DoT — port 853 blocked, no DNS-over-TLS bypass
Layer 5: Block DoH — port 443 to known providers blocked

Automation (Layer 6):

Layer 6: DNSBL — category blocklists for ads, malware, gambling, and custom domains

Is this enterprise-grade?

The layered approach mirrors what enterprise networks do — defense in depth, DNS enforcement, multiple bypass paths closed. For a homelab or small office it is production-grade.

What enterprise setups add on top:

Gap	Enterprise solution
DoH on unknown servers (port 443)	SSL inspection / TLS MITM proxy
Per-user policies	LDAP / Active Directory integration
Centralized audit logs	SIEM (Elasticsearch, Splunk)
Threat response	IDS/IPS with Suricata (next post)

You have the foundation. The next layer is intrusion detection.

For locking down OPNsense itself — admin interface restrictions, SSH hardening, automatic updates, and Suricata — continue to OPNsense Hardening: Lock Down Your Firewall After Install.
